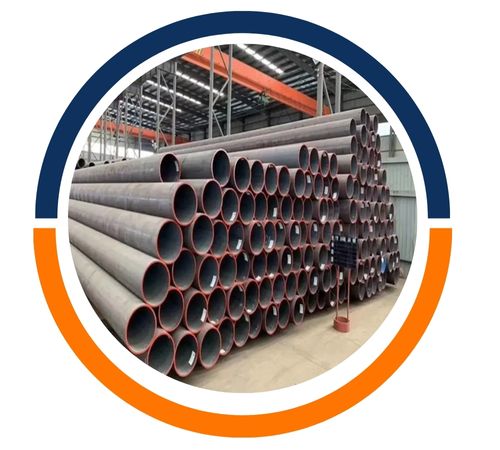

Marzouk Steel, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of top-notch steel piping products tailored for industrial and infrastructure needs. The company stands out for its cutting-edge manufacturing techniques, rigorous quality control measures, and commitment to international standards. One of its standout products is the Low Temperature Carbon Steel A333 Grade 1 Pipe, designed specifically for applications that demand dependable performance in chilly environments. With state-of-the-art production facilities and a team of seasoned experts, Marzouk Steel provides robust, safe, and cost-effective piping solutions that cater to the oil and gas, power generation, petrochemical, and industrial sectors around the globe.

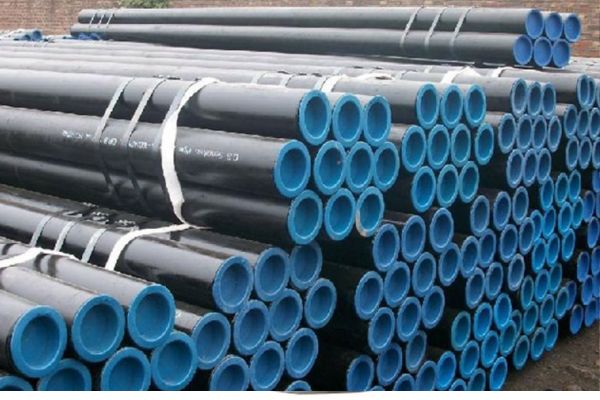

The Low Temperature Carbon Steel A333 Grade 1 Pipe is crafted to ensure it has the right strength and toughness even in low operating temperatures. Its chemical makeup usually consists of carefully controlled levels of carbon, manganese, phosphorus, sulfur, and silicon, which work together to deliver balanced mechanical properties. In terms of mechanics, this pipe boasts moderate tensile strength, adequate yield strength, and good impact resistance for low-temperature applications. These characteristics help minimize the risk of brittle fractures, maintain structural integrity under pressure, and ensure reliable performance in low-temperature piping scenarios.
| Type | Seamless / SAW / ERW / Spiral weld / Fabricated / Welded |
|---|---|
| Grade | Low Temperature Seamless Pipe: ASTM A333 Gr. 1 |
| Outer Dimensions | 19.05mm-457mm |
| Wall Thickness | 2.0mm-60mm |
| Lengths | required shall be specified on order.If no definite lengths required, following practice applies: |
| Single Random | 17′ ~ 24′ lengths |
| Double Random | 36′ ~ 44′ lengths |
| Additional Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, etc. |
| Compositions | Data |
|---|---|
| Carbon(max.) | 0.30 |
| Manganese | 0.40–1.06 |
| Phosphorus(max.) | 0.025 |
| Sulfur(max.) | 0.025 |
| Silicon | … |
| Nickel | … |
| Chromium | … |
| Other Elements | … |
| Properties | Data |
|---|---|
| Yield strength(min) | 205Mpa |
| Tensile strength(min) | 380Mpa |
| Elongation(%) | 35 |
| Nominal | OD mm | Pipe size | Sch. 30 | Sch20 | Schedule 40 | Sch.STD | Sch 60 | Strong (XS) | Schedule Extra | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wt. | Wall | |
| 3 | 10.3 | 1/8 | 1.73 | 0.357 | 1.73 | 0.37 | 0.47 | 2.41 | ||||||
| 6 | 13.7 | ¼ | 2.24 | 0.625 | 2.24 | 0.63 | 0.804 | 3.02 | ||||||
| 10 | 17.1 | 3/8 | 2.31 | 0.84 | 2.31 | 0.84 | 1.1 | 3.2 | ||||||
| 15 | 21.3 | ½ | 2.77 | 1.26 | 2.77 | 1.26 | 1.62 | 3.73 | ||||||
| 20 | 26.7 | ¾ | 2.87 | 1.68 | 2.87 | 1.69 | 2.2 | 3.91 | ||||||
| 25 | 33.4 | 1 | 3.38 | 2.5 | 3.38 | 2.5 | 3.24 | 4.55 | ||||||
| 32 | 42.2 | 11/4 | 3.56 | 3.38 | 3.56 | 3.39 | 4.47 | 4.85 | ||||||
| 40 | 48.3 | 11/2 | 3.68 | 4.05 | 3.68 | 4.05 | 5.41 | 5.08 | ||||||
| 50 | 60.3 | 2 | 3.9 | 5.44 | 3.9 | 5.44 | 7.48 | 5.5 | ||||||
| 65 | 73 | 21/2 | 5.16 | 8.63 | 5.2 | 8.63 | 11.41 | 7 | ||||||
| 80 | 88.9 | 3/8 | 5.5 | 11.3 | 5.5 | 11.3 | 15.3 | 7.62 | ||||||
| 90 | 1.6 | 31/2 | 5.74 | 13.57 | 5.74 | 13.57 | 18.63 | 8.08 | ||||||
| 100 | 114.3 | 4 | 6.02 | 16.07 | 6.02 | 16.07 | 22.3 | 8.56 | ||||||
| 125 | 141.3 | 5 | 6.55 | 21.77 | 6.6 | 21.77 | 30.9 | 9.53 | ||||||
| 150 | 168.3 | 6 | 7.11 | 28.26 | 7.11 | 28.26 | 42.5 | 10.97 | ||||||
| 200 | 219.1 | 8 | 7 | 36.8 | 6.35 | 33.3 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 64.6 | 12.7 |
| 250 | 273 | 10 | 7.8 | 51.3 | 6.35 | 41.7 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 81.5 | 12.7 |
| 300 | 323.9 | 12 | 8.4 | 65.2 | 6.35 | 49.7 | 10.3 | 79.7 | 9.53 | 73.8 | 14.3 | 109 | 97.4 | 12.7 |
| 350 | 355.6 | 14 | 9.53 | 81.3 | 7.92 | 68.1 | 11.13 | 94.3 | 9.53 | 81.3 | 15.1 | 126.4 | 107 | 12.7 |
| 400 | 406.4 | 16 | 9.5 | 93.3 | 7.92 | 77.9 | 12.7 | 123 | 9.53 | 93.3 | 16.7 | 160 | 123 | 12.7 |
| 450 | 457.2 | 18 | 11.1 | 122 | 7.92 | 87.8 | 14.3 | 156 | 9.53 | 105 | 19 | 206 | 130 | 12.7 |
| 500 | 508 | 20 | 12.7 | 155.1 | 9.53 | 117.2 | 15.1 | 183 | 9.53 | 177.2 | 20.6 | 248 | 155.1 | 12.7 |
| 550 | 558.8 | 22 | 12.7 | 171 | 9.53 | 129 | 9.53 | 129 | 22.2 | 294 | 171 | 12.7 | ||
| 600 | 609.6 | 24 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 9.53 | 141 | 24.5 | 355 | 187 | 12.7 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Marzouk Steel is a leading supplier of high-quality Low Temperature Carbon Steel A333 Gr 1 Pipe products in Tunis, Tunisia. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
You’ll often find Low Temperature Carbon Steel A333 Grade 1 Pipes in settings where moderate resistance to low temperatures is essential. They’re perfect for oil and gas pipelines, industrial fluid transport systems, and process piping in refineries and chemical plants. Additionally, these pipes are utilized in power generation facilities and various industrial services that manage pressurized liquids and gases. Their affordability, ease of fabrication, and reliable mechanical performance make them a smart choice for projects operating in colder environments.
Marzouk Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Tunis, Tunisia.
