Marzouk Steel, based in Tunis, Tunisia, stands out as a dependable manufacturer and supplier of ASME SA 387 Grade 22 Class 1 and Class 2 sheets and plates. The company focuses on providing alloy steel materials that adhere to rigorous ASME standards, specifically designed for pressure vessel and high-temperature applications. With state-of-the-art production facilities and thorough quality control measures, Marzouk Steel guarantees consistent performance, precise dimensions, and a long lifespan for its products. Their dedication to quality and customer satisfaction has established them as a trusted provider of SA 387 Grade 22 plates in both local and international markets.

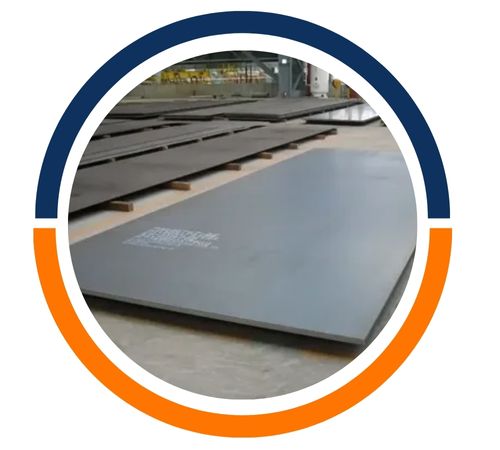

ASME SA 387 Grade 22 Class 1/2 Sheets and Plates are premium alloy steel plates meant for high-pressure and high-temperature applications. The plates consist of 2.00-2.50% Chromium, 0.87-1.13% Molybdenum, 0.30-0.60% Manganese and 0.05% Phosphorus. Which improve their strength, corrosion resistance and durability. They possess superior weldability and toughness. Which makes them ideal for applications in heat-resistant industries. They are produced to ASME standards and are perfectly suited for boilers and pressure vessels, providing dependability under extreme conditions while sustaining superior mechanical properties.
| Standard | ASTM A387 / ASME SA387 |
|---|---|
| Width | 1000mm-3000mm |
| Thickness | 1.0mm – 200mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Grade | C | Si | Mn | P | S | Cr | Mo |
| A387 GR.22 CL.1 & 2 | 0.04-0.15 max | 0.50 max | 0.30-0.60 max | 0.035 max | 0.035 max | 1.88-2.62 max | 0.85-1.15 max |
| Grade | A387 GR.22 CL.1 & 2 | |||
| A387 GR.22 CL.1 & 2 | Thickness mm | Yield Min Mpa | Tensile Mpa | Elongation Min % |
| t≦50 | 205 | 415-585 | 18 | |
| 50<t≦200 | – | – | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
ASME SA 387 Grade 22 is a chromium-molybdenum alloy steel that contains around 2.00–2.50% chromium and 0.90–1.10% molybdenum, along with carefully controlled levels of carbon, manganese, silicon, sulfur, and phosphorus. This specific composition delivers outstanding strength, creep resistance, and oxidation resistance at high temperatures. Class 1 plates are provided in a normalized state, while Class 2 plates undergo quenching and tempering to enhance their mechanical properties. These materials boast high tensile and yield strength, impressive toughness, and reliable performance under pressure.
ASME SA 387 Grade 22 Class 1 and Class 2 sheets and plates find extensive use in the construction of pressure vessels, boilers, reactors, and heat exchangers that operate under high temperatures and pressures. They are frequently utilized in oil refineries, petrochemical plants, power generation facilities, and chemical processing industries. These plates are ideal for components that face hydrogen service, thermal stress, and corrosive environments. Their remarkable mechanical strength, excellent weldability, and resistance to high-temperature degradation make them a top choice for critical industrial equipment.
