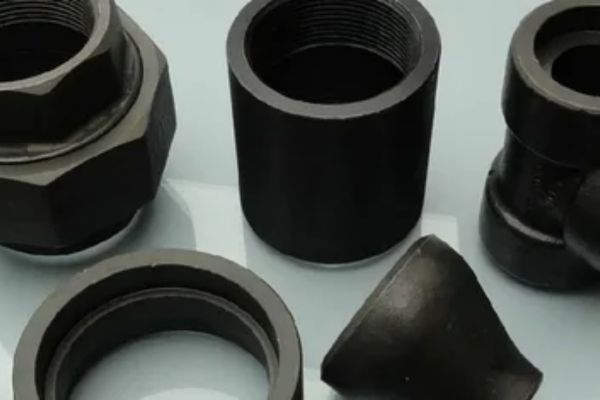

Marzouk Steel, based in Tunis, Tunisia, stands out as a top-notch manufacturer and supplier of high-quality Carbon Steel F70 Forged Fittings. Renowned for their precision, durability, and strength, this company caters to a wide range of industrial, commercial, and engineering sectors. By employing advanced forging techniques and maintaining strict quality control, Marzouk Steel guarantees that each F70 forged fitting adheres to international standards for reliability and performance. These fittings come in various sizes, pressure ratings, and specifications, making them ideal for engineers, fabricators, and contractors in search of trustworthy piping solutions. With a wealth of technical expertise, Marzouk Steel provides cost-effective, robust, and long-lasting Carbon Steel F70 Forged Fittings for critical applications.
The Carbon Steel F70 Forged Fittings are crafted from high-grade carbon steel, with carefully balanced levels of carbon, manganese, and trace elements to ensure optimal strength, toughness, and hardness. Mechanically, they boast impressive tensile and yield strength, outstanding impact resistance, and exceptional pressure-handling capabilities. The forging process results in a uniform grain structure, boosting durability and resistance to mechanical stress. These mechanical properties make Carbon Steel F70 forged fittings perfect for welding, threading, and fabrication, ensuring long-term performance and reliability in demanding industrial, chemical, and engineering applications.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

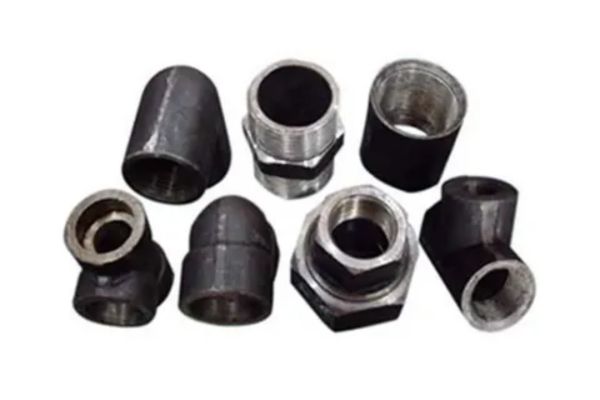

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F70 | 0.06-0.10 | 0.20-0.40 | 1.10-1.40 | ≤ 0.020 | ≤ 0.010 | 1.20-1.70 | 0.20-0.40 | ≤ 0.30 | ≤ 0.25 | 0.02-0.06 | – |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 70 | 82 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

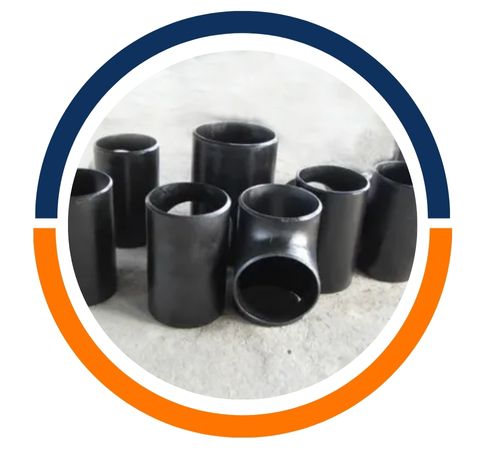

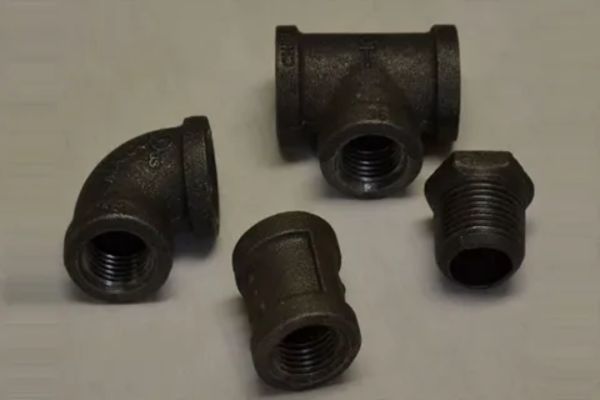

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F70 Forged Screwed Elbows, Street Elbow, Carbon Steel F70 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F70 Reducing Coupling, Carbon Steel F70 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F70 Threaded Bushing, Carbon Steel F70 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F70 Barrel Nipples, CS F70 Forged Threaded Boss, Carbon Steel F70 Forged Hex Head Bull Plugs |
| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F70 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F70 caps, 3000LB Socket Weld Cross |

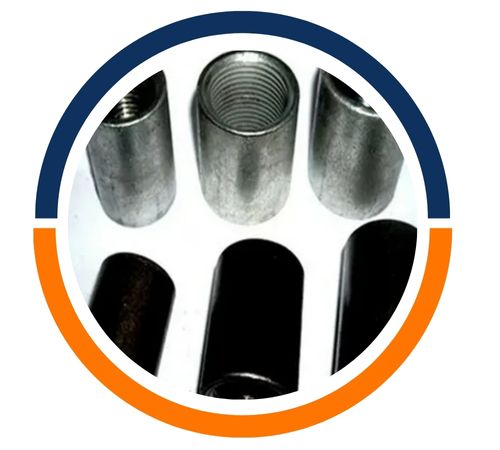

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F70 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F70 Coupling |
These fittings are widely utilized in industries that require strong and dependable connections. They’re commonly found in oil and gas pipelines, chemical processing plants, and power generation systems, where they join pipes, valves, and other equipment. In construction and mechanical engineering projects, F70 forged fittings create leak-proof and secure connections in high-pressure systems. Their durability, ability to endure extreme temperatures and mechanical stress, and versatility in various fabrication processes make Carbon Steel F70 forged fittings an essential component for industrial applications.
Marzouk Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Tunis, Tunisia.
